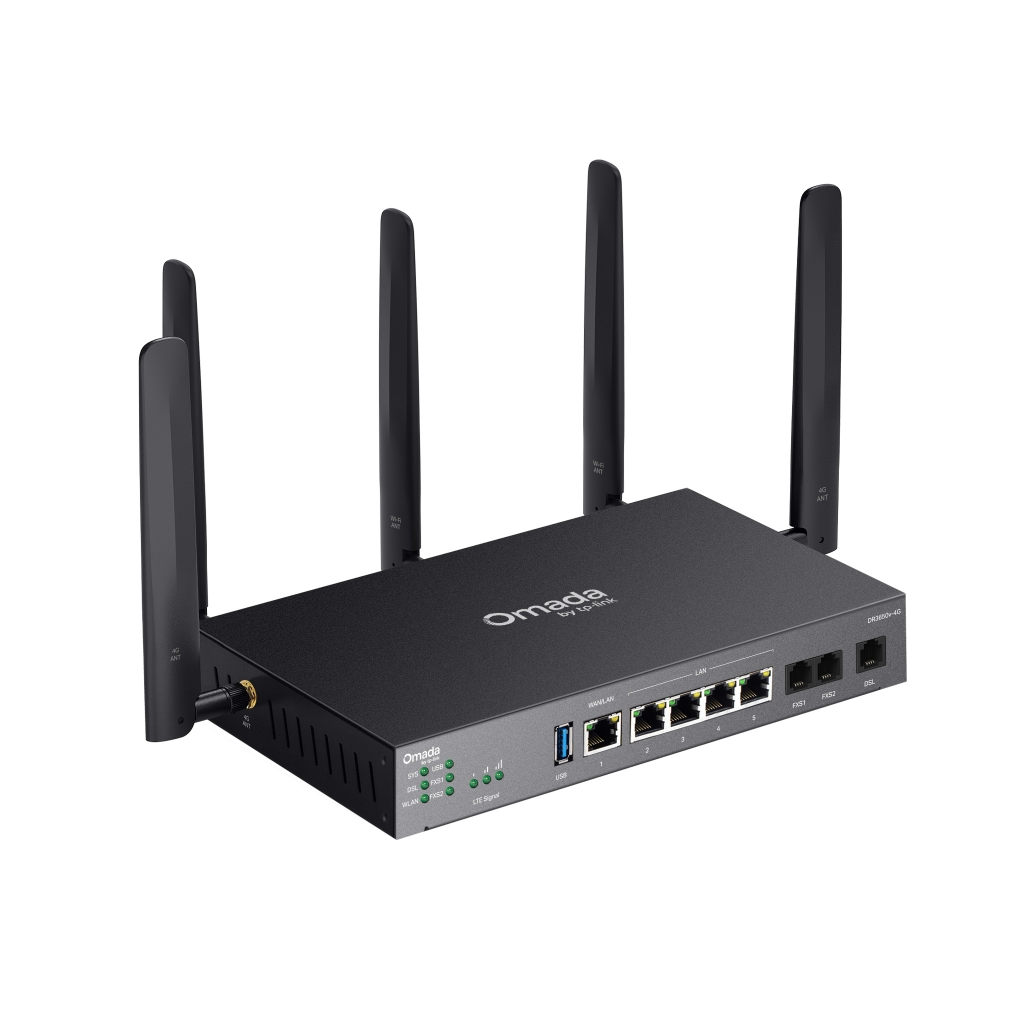

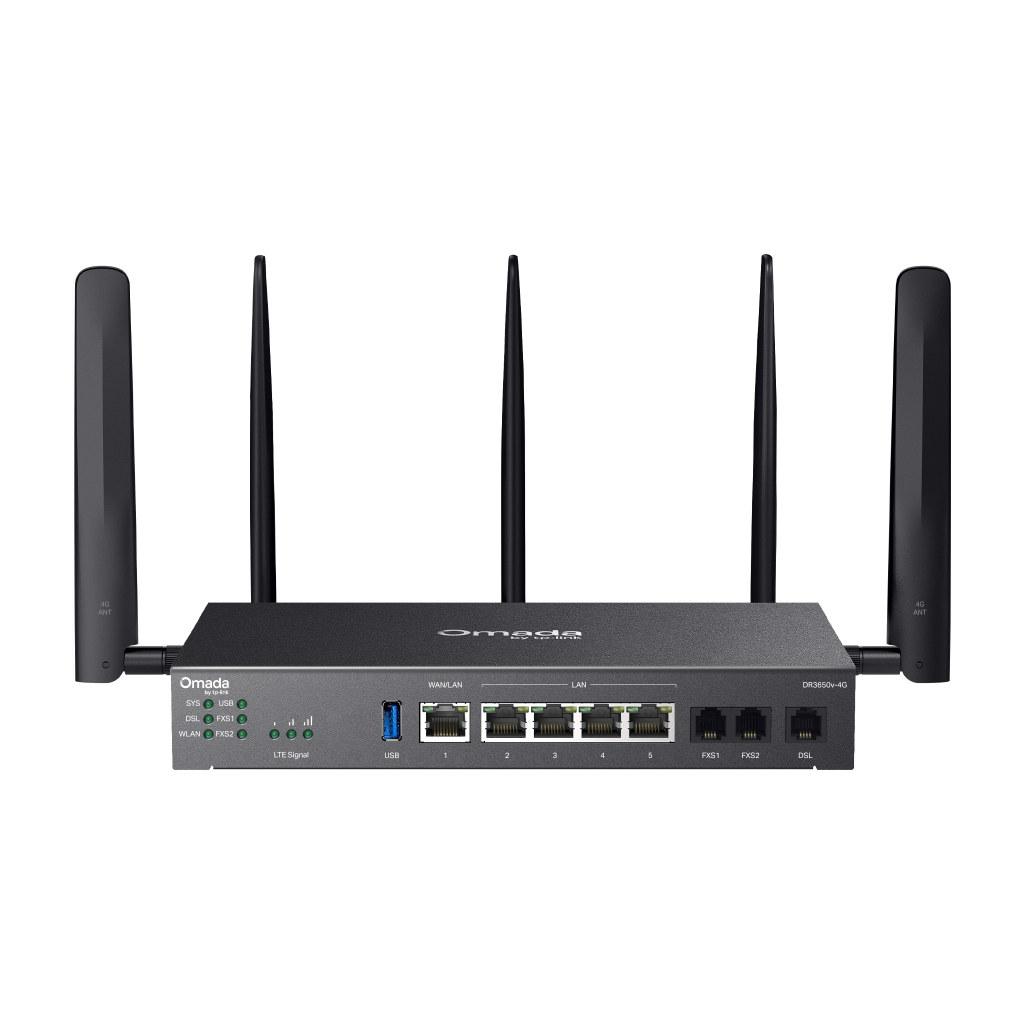

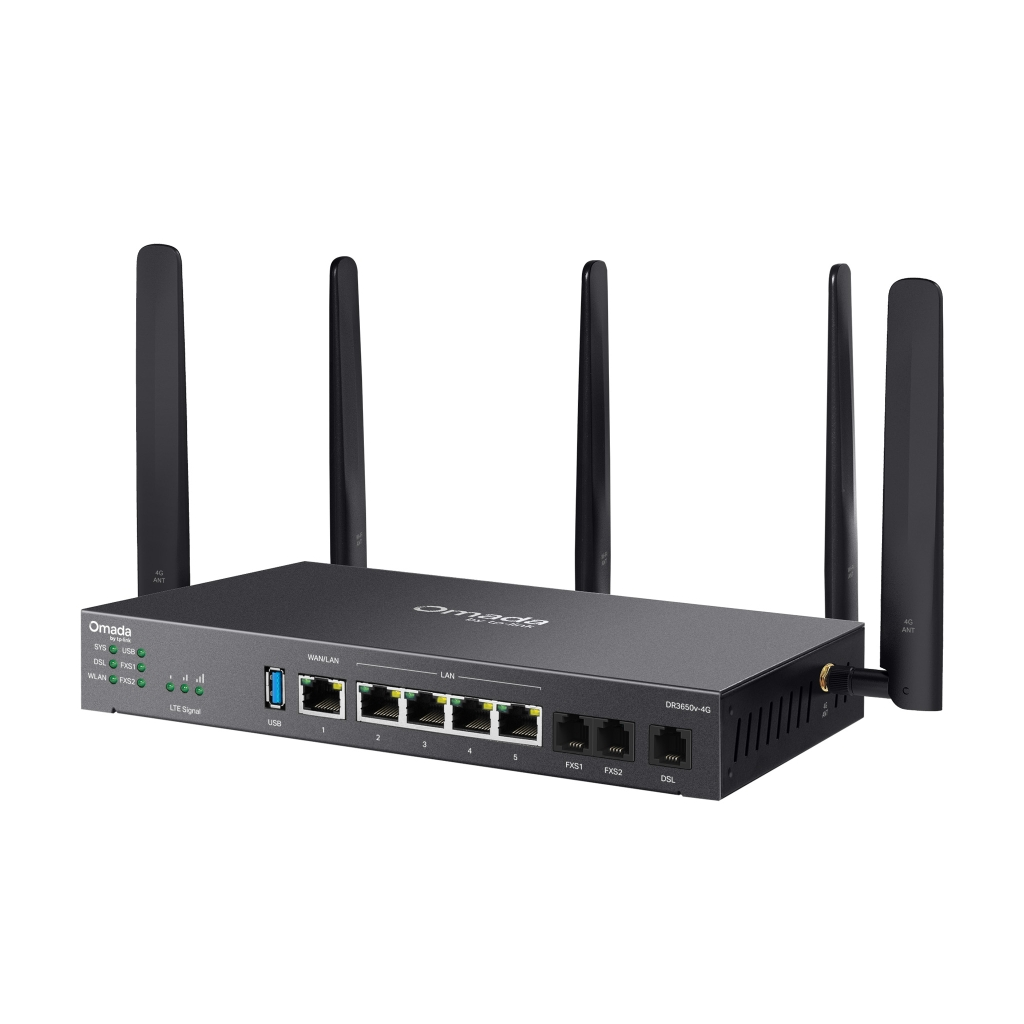

OMADA DR3650v-4G, Wi-Fi 6, AX3000, Dual Band, Gigabit, Masaüstü Load Balance VPN Gateway
| 4G | |
|---|---|
| Network Type | LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/ 900/800/700/1450 MHz • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| SIM Type | Dual-SIM Nano SIM Slot (4G+ Cat6) |
| Frequency | • Downlink: 300 Mbps; • Uplink: 50 Mbps |
| GVENLİK | |
|---|---|
| DPI | • Deep Packet Inspection • Support 2421 type Applications |
| Access Control | • Source/Destination IP Based ACL Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN |
| DNS Proxy | DNSSEC, DoH, DoT, and DNS Override |
| Filtreleme | • Web Group Filtering*5 • URL Categories and URLs Filtering • Web Security*5 |
| ARP Denetleme | • Sending GARP Packets • ARP Scanning*5 • IP-MAC Binding • ARP Detection |
| Saldırı Koruması | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| DONANIM ZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP,L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, 802.11a/b/g/n/ac/ax, LLDP |
| Arabirim | • 1× Gigabit WAN/LAN Port • 4× Gigabit LAN Ports • 1× DSL Port • 2× FXS Ports • 1× USB 3.0 (supports USB LTE dongle and USB Storage) • Dual-SIM Nano SIM Slot (4G+ Cat6) |
| Buton | Reset Button |
| G Kaynağı | 12V DC / 3.3A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Boyutlar ( W X D X H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Anten | • Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas |

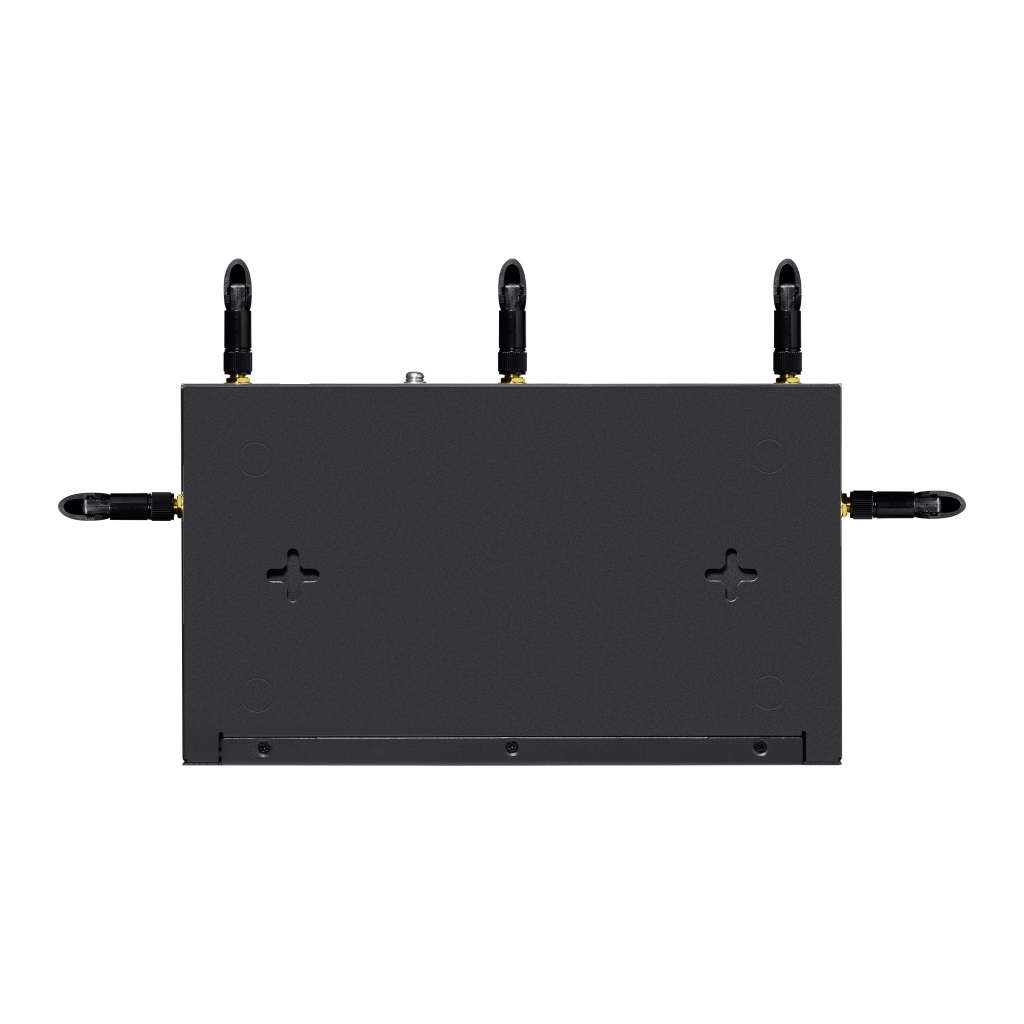

| Montaj | Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately) |
| Maks. G Tketimi | Power adapter not included: 28.482 W (Full load + USB) Power adapter included: 31.42 W (Full load + USB) |
| PERFORMANS | |
|---|---|
| DPI Throughput | • TCP: 881 Mbps • UDP: 813 Mbps |
| GRE | • Unencrypted: 967 Mbp • Encrypted: 616 Mbps |
| WireGuard VPN | 311.6Mbps |
| Eşzamanlı Oturum | 150,000 |
| New Sessions /Second | 3,800 |
| NAT (Static IP) | • Upload: 937.2 Mbps • Download: 936.1Mbps |
| NAT(DHCP) | • Upload: 945.8 Mbps • Download: 940.6Mbps |
| NAT(PPPoE) | • Upload: 942.9 Mbps • Download: 942.9Mbps |
| NAT (L2TP) | • Upload: 837.4 Mbps • Download:881.5Mbps |
| NAT (PPTP) | • Upload: 803.0 Mbps • Download: 910.5 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 569.9Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 539.3Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | • Unencrypted: 909.4 Mbps • Encrypted: 494.9Mbps |
| PPTP VPN Throughput | • Unencrypted: 897.5 Mbps • Encrypted: 190.8 Mbps |
| SSL VPN Throughput | 126.7Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| KABLOSUZ ZELLİKLERİ | |
|---|---|
| Gelişmiş Fonksiyonlar | • Seamless Roaming • Mesh (with EAP that supports Mesh)*4 • OFDMA • Beamforming • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • MU-MIMO • Load Balance • Automatic Channel Selection Algorithm • Airtime Fairness • Rate Limit: Based on SSID/Client • Transmit Power Control: Adjust transmit Power on dBm • Multiple SSIDs: 16 in total (8 per radio) • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Band Steering • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Guest Network |
| TEMEL FOKSİYONLAR | |
|---|---|
| LAN DNS | √ |
| WAN Bağlantı Tr | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Klon | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60 |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| mDNS Repeater | √ |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| GELİŞMİŞ FONKSİYONLAR | |
|---|---|
| Gelişmiş Ynlendirme | • Static Routing • Policy Routing • RIP*5 • OSPF*5 |
| Bandwidth Kontrol | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
| Session Limit | IP-Based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)*7 • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)*7 • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)*7 • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password*6 • Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6) • External Radius Sever • External Portal Sever*6 • LDAP |
| YNETİM | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Servis | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Bakım | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize*5 • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes. Require the use of an Omada Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| DİĞERLERİ | |
|---|---|
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ VOIP Server Monitor SIP messages • Port: 5060 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP |
| Sertifika | CE, RoHS |
| Paket İeriği | • DR3650v-4G • Power Adapter • Ethernet Cable • Phone Cable • Rubber Feet • SIM Card Eject Pin • Quick Installation Guide |
| Sistem Gereksinimleri | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Ortam | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
Özellikler
| Kullanım Yeri | İç Ortam |
| Anten | 5 Adet |
| Wi-Fi Veri Transfer Hızı | 3000 Mbps |
| Ethernet Portu | 5 Adet |
| 3G-4G Desteği | Var |
