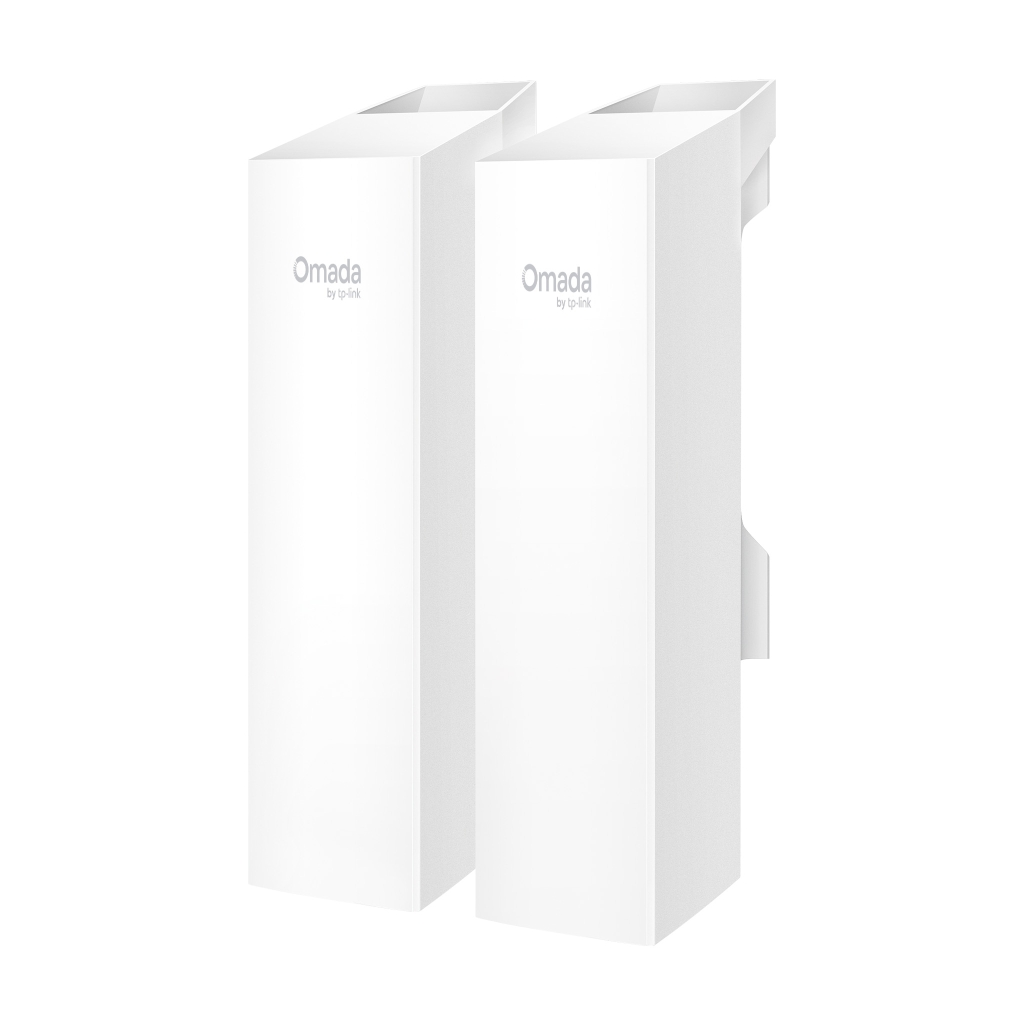

OMADA EAP100-Bridge Kit, 3Port Gigabit, 300Mbps, 2,4Ghz, Pasif Poe, Indoor/Outdoor (1km)
| DONANIM ZELLİKLERİ | |
|---|---|

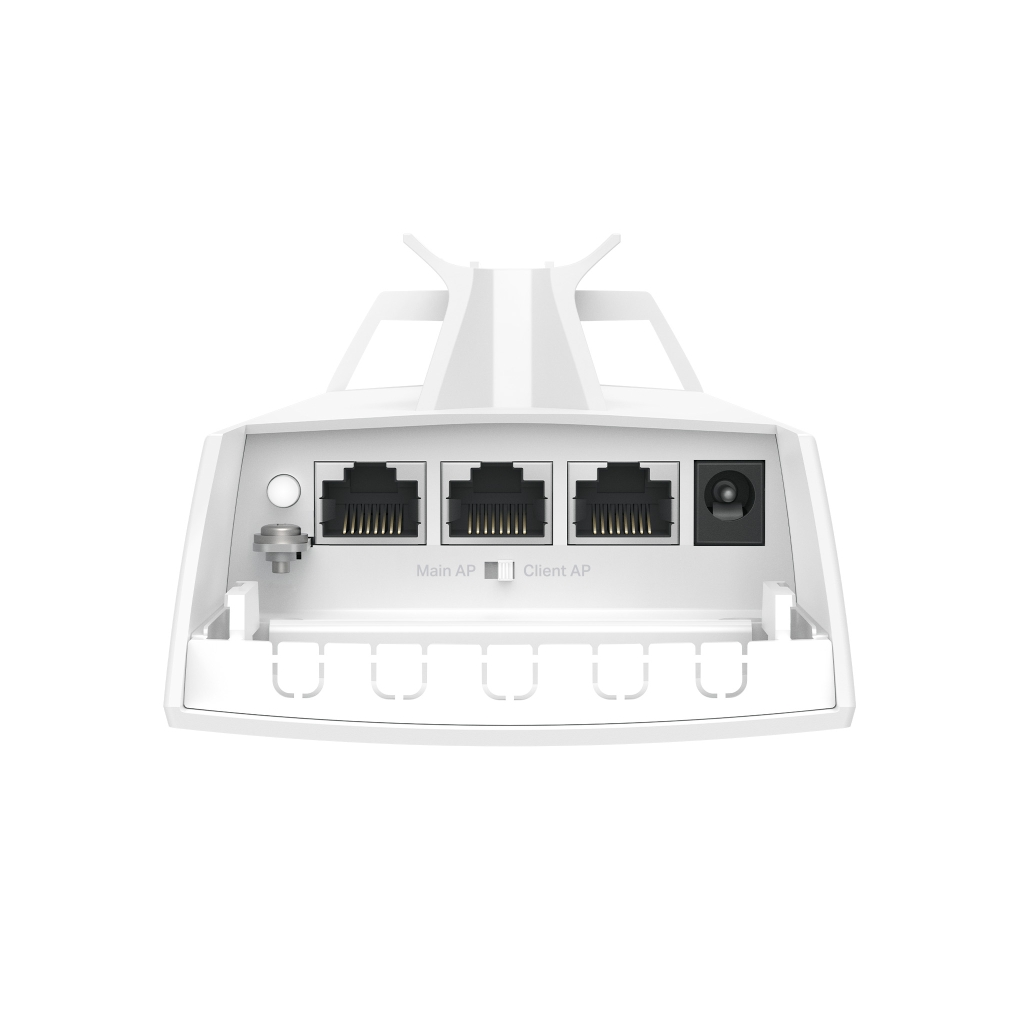

| Arabirim | 3x 10/100 Mbps Ethernet Ports |
| Buton | Pair/Reset |
| G Kaynağı | 12V DC 802.3af PoE 24V Passive PoE / 48V Passive PoE (Passive PoE Adapter Included - For Dry Indoor Use Only) |
| G Tketimi | 4.8 W |
| Boyutlar ( W X D X H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Anten | Internal 2×2 Dual-polarized directional MIMO antennas 2.4 GHz: 8.0 dBi Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |
| Montaj | Pole and wall mounting ( Pole accessories included) |
| KABLOSUZ ZELLİKLERİ | |
|---|---|
| Coverage | 500 m (0.31 mi)* |
| Kablosuz Standartlar | IEEE 802.11b/g/n |
| Frekans | 2.4 GHz |
| Bağlantı Hızı | 2.4 GHz: Up to 300 Mbps |
| Kablosuz Fonksiyonlar | • MIMO: 2.4G 2 × 2 MIMO • Mesh • Beamforming • Channel: 1-11 (US); 1-13 (EU) • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Kablosuz Gvenlik | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| İletim Gc | • CE: <20dBm (2.4 GHz, EIRP); • FCC: <22dBm (2.4 GHz) |
| YNETİM | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada App |
| Eposta Uyarı | Yes |
| LED Aık/Kapalı Kontrol | Yes |
| SNMP | Yes |
| Yerel/Uzak Sistem Gnlğ Kaydı | Yes |
| SSH | Yes |
| Web-tabanlı Ynetim | Yes |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İeriği | • EAP100-Bridge KIT • Installation Guide • Pole Mounting Kit • Passive PoE Adapter • Power Cord |
| Ortam | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
Özellikler
| Kullanım Yeri | İç-Dış Ortam |
| Anten | Dahili |
| Wi-Fi Veri Transfer Hızı | 3000 Mbps |
| Ethernet Portu | 3 Adet |
| 3G-4G Desteği | Yok |
