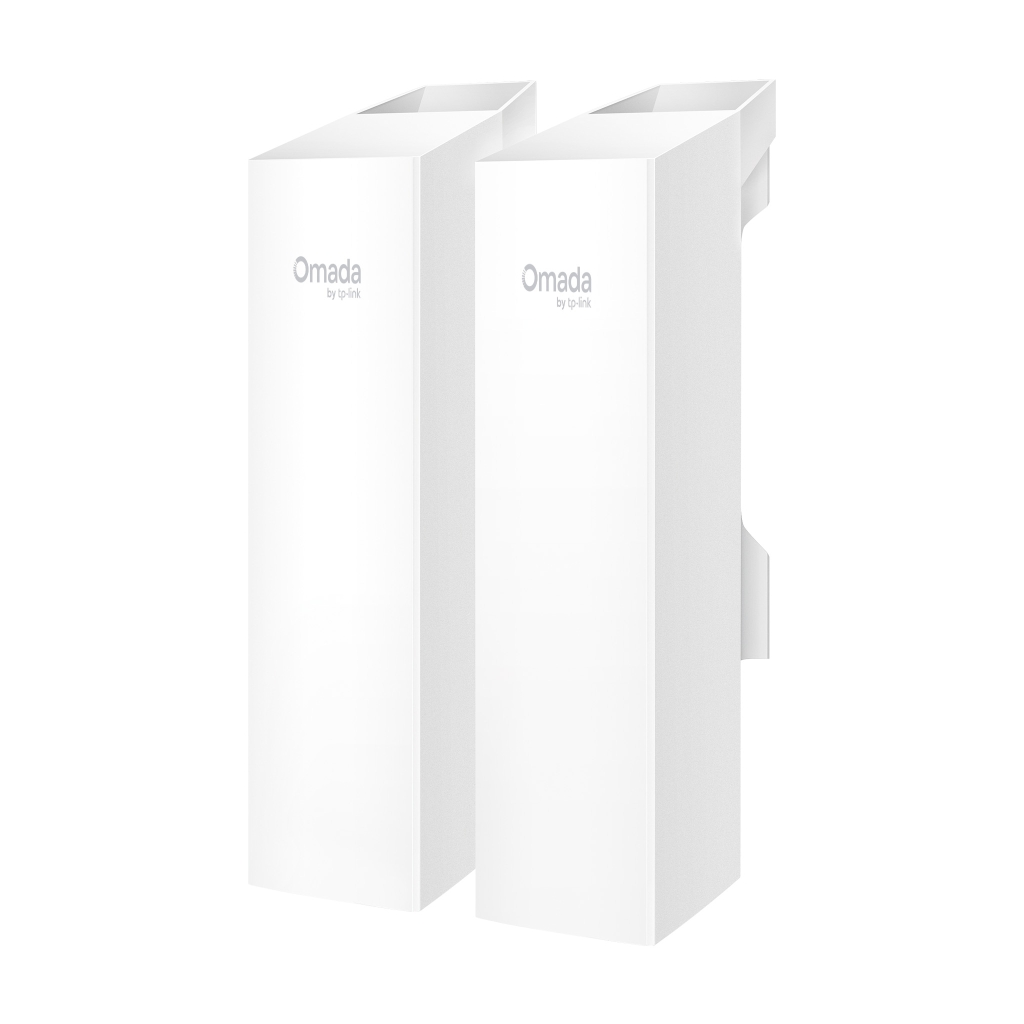

OMADA EAP211, 3Port Gigabit, 867Mbps, 5Ghz, Pasif Poe, Long Range, Indoor/Outdoor Bridge Kit (1km)
| DONANIM ZELLİKLERİ | |
|---|---|

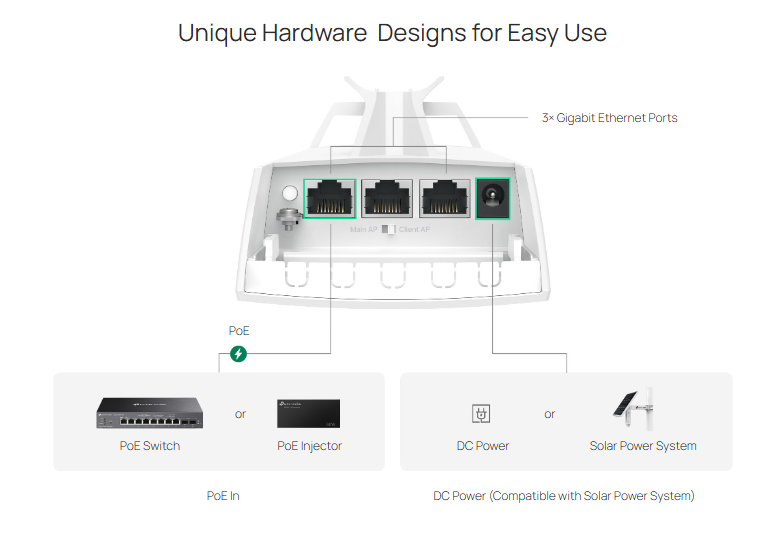

| Arabirim | 3x Gigabit Ethernet Ports |
| Buton | Reset |

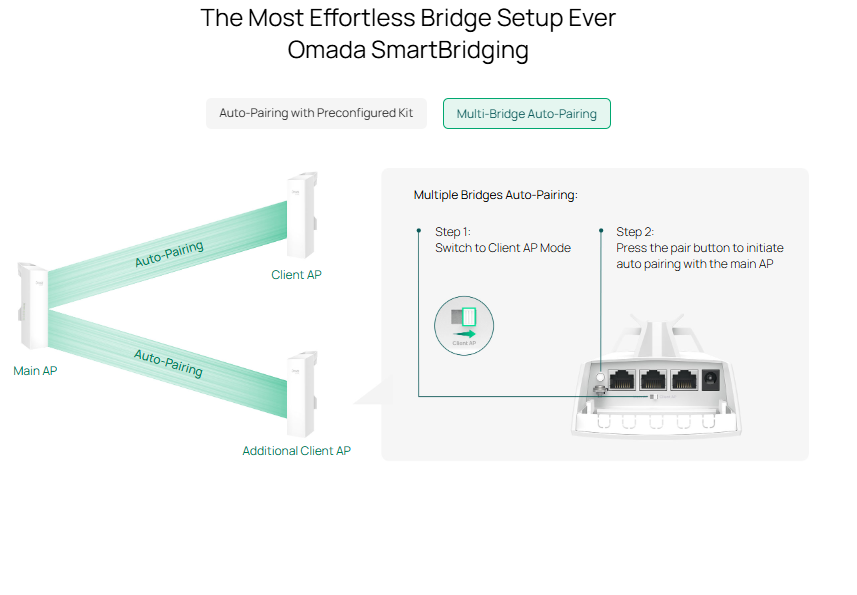

| DIP Switch | Role Switch |
| G Kaynağı | 12V DC / 802.3af PoE / 24V Passive PoE |
| G Tketimi | 11.5W |

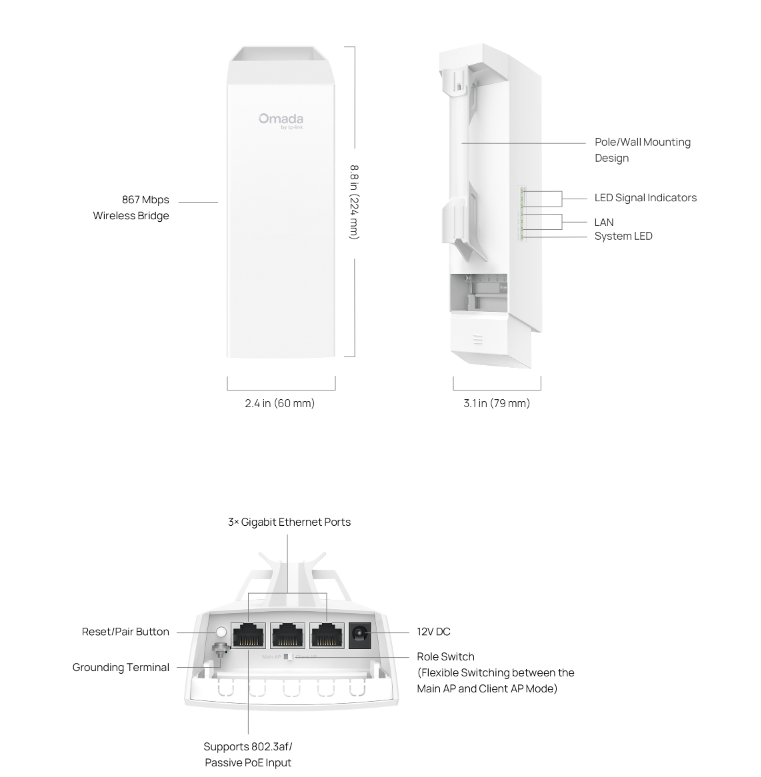

| Boyutlar ( W X D X H ) | 8.8 × 3.1 × 2.4 × in (224 × 79 × 60 mm) |

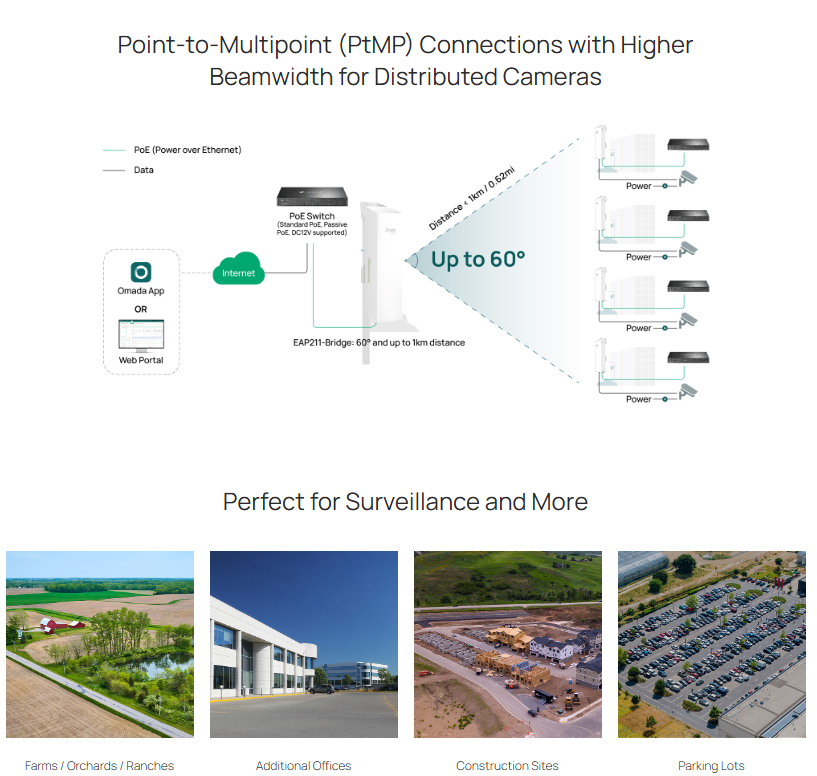

| Anten | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 10.0 dBi Horizontal:60°, Vertical: 30° |
| Weatherproof Enclosure | IP65 |
| Montaj | Pole and wall mounting ( Pole accessories included) |
| KABLOSUZ ZELLİKLERİ | |
|---|---|
| Coverage | 1000m(3280ft)* |
| Kablosuz Standartlar | IEEE 802.11 a/n/ac |
| Frekans | 5 GHz |
| Bağlantı Hızı | 5 GHz: Up to 867 Mbps§ |
| Kablosuz Fonksiyonlar | • MU-MIMO: 5G 2x2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Kablosuz Gvenlik | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| İletim Gc | • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz, band3, EIRP) • FCC: <23dBm (5 GHz, band1) <25dBm (5 GHz, band4) |
| YNETİM | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |

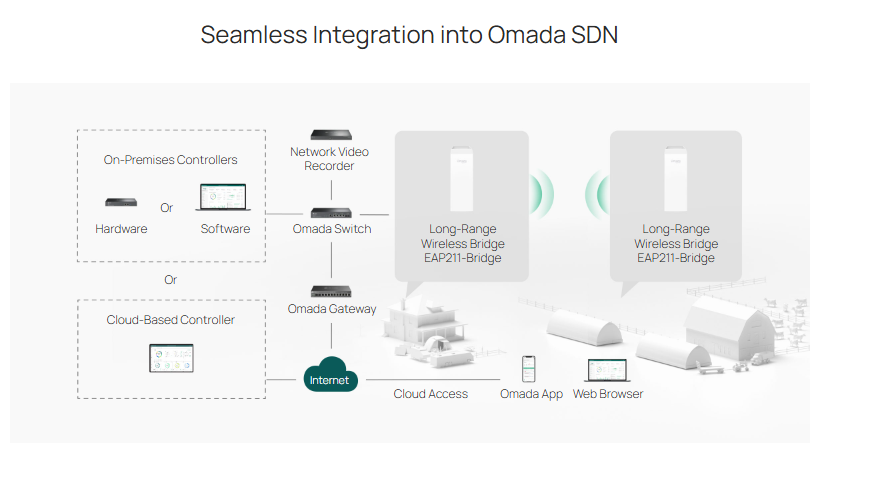

| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada App |
| Cloud Access | Yes. Require the use of Omada Controllers. |
| Eposta Uyarı | Yes |
| LED Aık/Kapalı Kontrol | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-tabanlı Ynetim | Yes |
| Zero-Touch Provisioning | Yes |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İeriği | • EAP211-Bridge KIT • Installation Guide • Mounting Kit |
| Lightning Protection | • Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV |
| Ortam | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
Özellikler
| Kullanım Yeri | İç-Dış Ortam |
| Anten | Dahili |
| Wi-Fi Veri Transfer Hızı | 867 MBPS |
| Ethernet Portu | 3 Adet |
| 3G-4G Desteği | Yok |
