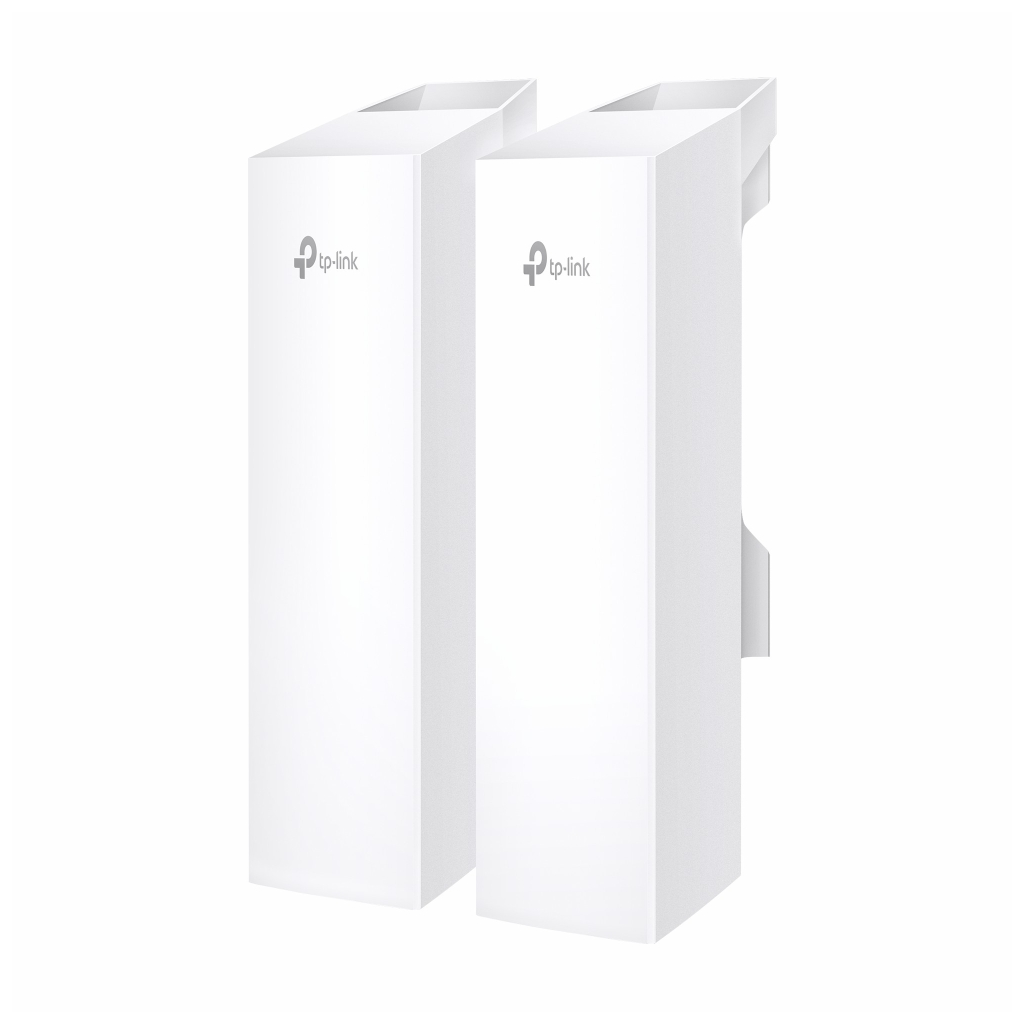

OMADA EAP215, 3Port Gigabit, 867Mbps, 5Ghz, Pasif Poe, Long Range, Indoor/Outdoor Bridge Kit (5km)
| DONANIM ZELLİKLERİ | |
|---|---|
| Arabirim | 3x Gigabit Ethernet Ports*6 |
| Buton | Reset |
| G Kaynağı | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| G Tketimi | 11.5W |
| Boyutlar ( W X D X H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Anten | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 11.0 dBi Horizontal:35°, Vertical: 35° |
| Weatherproof Enclosure | IP65 |
| Montaj | Pole mounting (Accessories included) |
| KABLOSUZ ZELLİKLERİ | |
|---|---|
| Coverage | 5000m(16400ft)5 |
| Kablosuz Standartlar | IEEE 802.11 a/b/g/n/ac |
| Frekans | 5 GHz |
| Bağlantı Hızı | 5 GHz: Up to 867 Mbps |
| Kablosuz Fonksiyonlar | • Mesh*4 • MU-MIMO: 5G 2x2 MU-MIMO DL • Load Balance • Beamforming • Seamless Roaming(802.11r) • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Kablosuz Gvenlik | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| İletim Gc | • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP); • FCC: <22dBm (5 GHz band1/4) |
| YNETİM | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED Aık/Kapalı Kontrol | Yes |
| MAC Erişim Kontrol Ynetimi | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-tabanlı Ynetim | Yes |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İeriği | • EAP215-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit |
| Ortam | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
Özellikler
| Kullanım Yeri | İç-Dış Ortam |
| Anten | Dahili |
| Wi-Fi Veri Transfer Hızı | 867 MBPS |
| Ethernet Portu | 3 Adet |
| 3G-4G Desteği | Yok |
