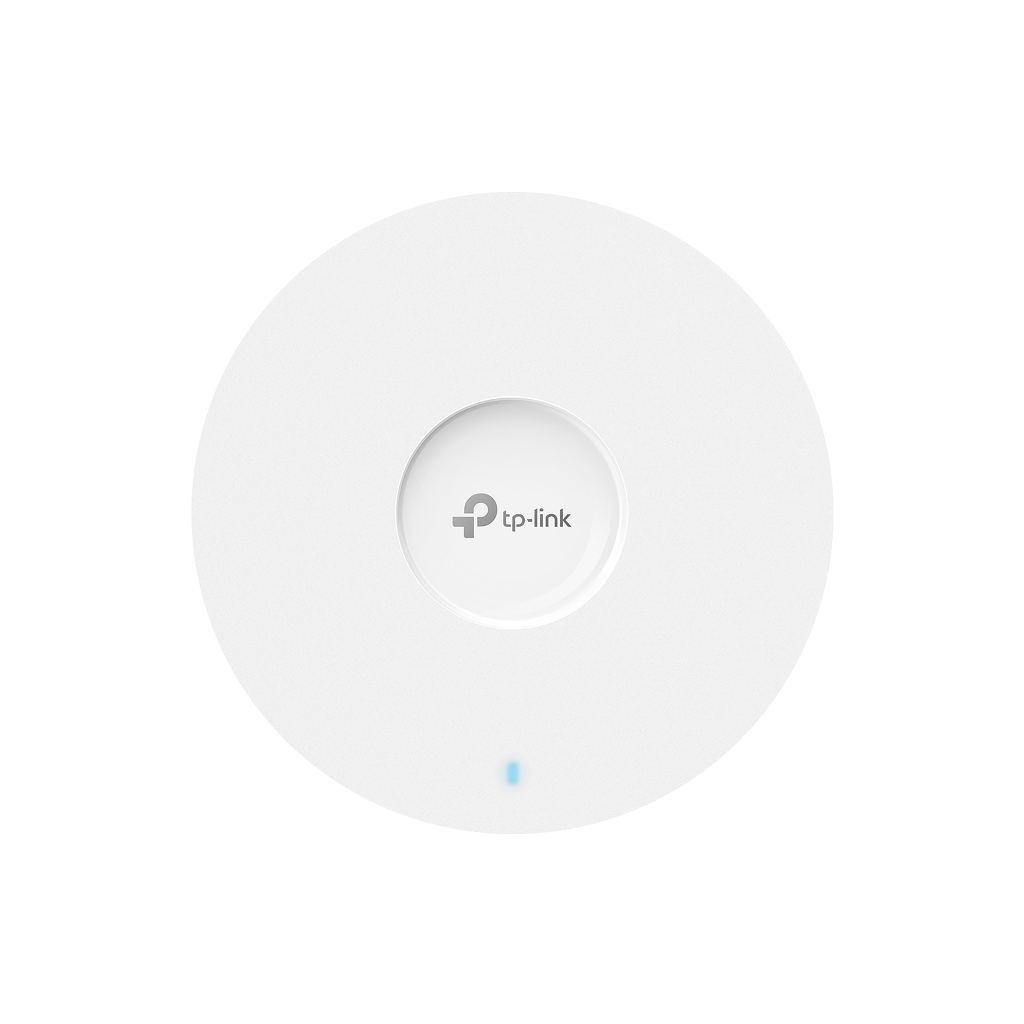

OMADA EAP653, 1Port Gbit, AX3000, WiFi 6, Dual Band, Tavan tipi, Pasif Poe, Access Point

https://tenetteknoloji.com/web/image/product.template/5090/image_1920?unique=8e11980

6.180,37 ₺ 6180.37 TRY 6.180,37 ₺

Satış için Uygun Değil

  • Kullanım Yeri
  • Anten
  • Wi-Fi Veri Transfer Hızı
  • Ethernet Portu
  • 3G-4G Desteği

Bu kombinasyon mevcut değil.

Bize Ulaşın

Şartlar ve Koşullar
30-gün para iade garantisi
Gönderim: 2-3 İş Günü

Paylaş

DONANIM ZELLİKLERİ

Arabirim1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
ButonReset
G Kaynağı• 802.3at PoE
• 12V DC / 1.2 A (Power Adapter IS NOT included)
• 48V Passive PoE
G Tketimi• EU: 13.2 W
• US: 14.6 W
Boyutlar ( W X D X H )6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
AntenInternal Omni
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 3× 5 dBi (One Auxiliary Antenna Included)
BluetoothV5.2
Montaj• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

KABLOSUZ ZELLİKLERİ

Coverage140㎡(1500 ft²)***
Concurrent Clients250+**
Kablosuz StandartlarIEEE 802.11ax/ac/n/g/b/a
Frekans2.4 GHz and 5 GHz
Bağlantı Hızı• 5 GHz: Up to 2402 Mbps†
• 2.4 GHz: Up to 574 Mbps†
Kablosuz Fonksiyonlar• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MIMO(2.4GHz:2*2 SU/MU-MIMO; 5GHz:2*2 SU/MU-MIMO)
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming(802.11k/v/r)§
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Kablosuz Gvenlik• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
İletim Gc• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<27 dBm(5 GHz, Band3, EIRP)

• FCC:
<24 dBm (2.4 GHz)
<25 dBm (5 GHz)

YNETİM

Omada AppYes
Centralized Management• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Eposta UyarıYes
LED Aık/Kapalı KontrolYes
MAC Erişim Kontrol YnetimiYes
SNMPv1, v2c, v3
Yerel/Uzak Sistem Gnlğ KaydıLocal/Remote Syslog
SSHYes
Web-tabanlı YnetimHTTP/HTTPS
L3 YnetimYes
Multi-site YnetimYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.

DİĞERLERİ

SertifikaCE, FCC, RoHS
Paket İeriği• EAP653
• Ceiling/Wall Mounting Kits
• Installation Guide

Note: DC adapter is not included in the package, and is sold separately.
Sistem GereksinimleriMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Ortam• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Özellikler

Kullanım Yeri Tavan Tipi
Anten Dahili
Wi-Fi Veri Transfer Hızı 3000 Mbps
Ethernet Portu 1 Adet
3G-4G Desteği Yok
