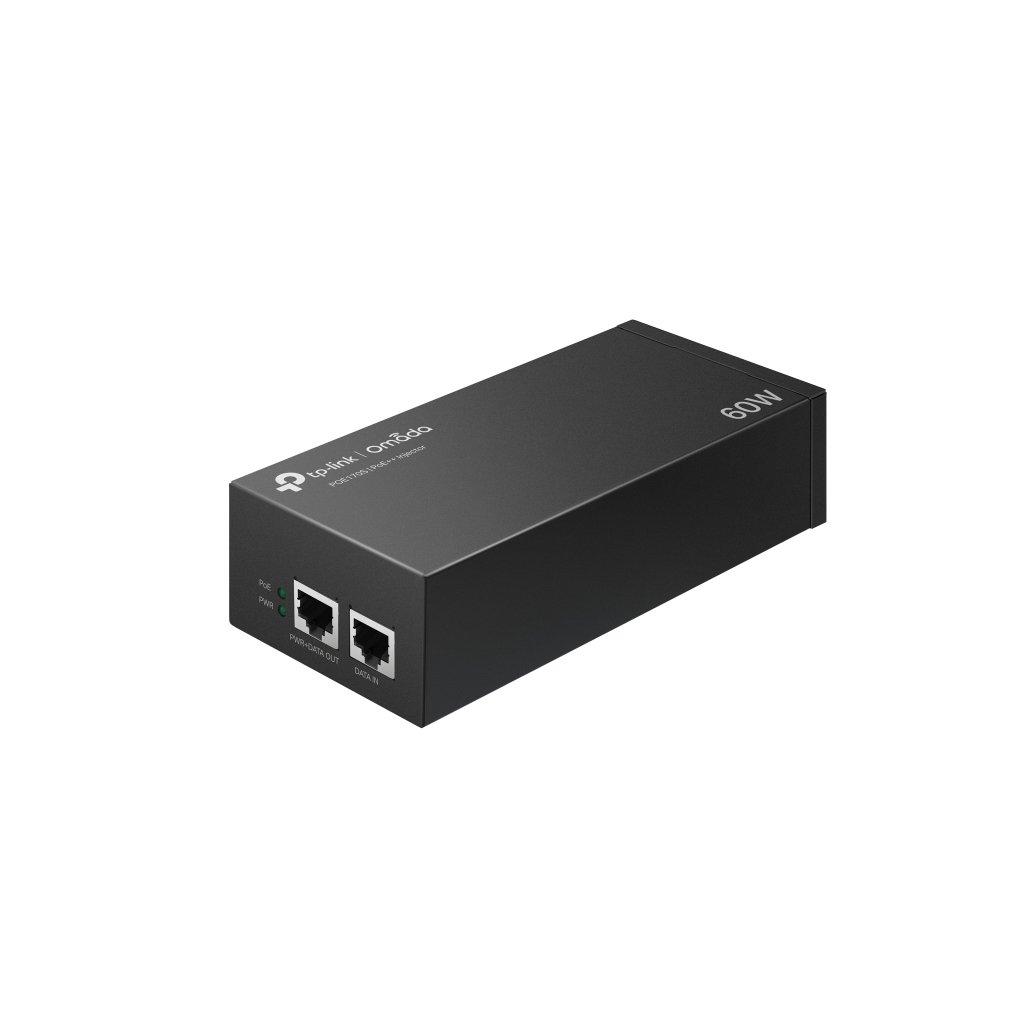

OMADA POE170S, 2 Port Gigabit, 60W PoE++ Metal Kasa Masaüstü Injector
Omada PoE++ Injector
- Two Gigabit ports
- Complies with IEEE802.3af/at/bt (type 3) standards, supplies up to 60 W
- Transmitting data and power to PoE devices via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design
- Plug & Play installation
- Durable metal casing
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
| Arabirim | • 1× 10/100/1000Mbps RJ45 data-in port • 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) • 1× AC socket |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m) |
| Güç Tüketimi | • Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 60 W) |
| Temel Fonksiyon | • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| LED | • Power • PoE |
| Boyutlar ( W X D X H ) | 6.1×2.8×1.7 in (155×70×42 mm) |
| GENEL | |
|---|---|
| Material | Metal Casing |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHS |
| Paket İçeriği | • Omada PoE++ Injector POE170S • Installation Guide • Power Cord • RJ45 Cable |
| Ortam | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
Özellikler
| Kullanım Yeri | PoE Injector |
