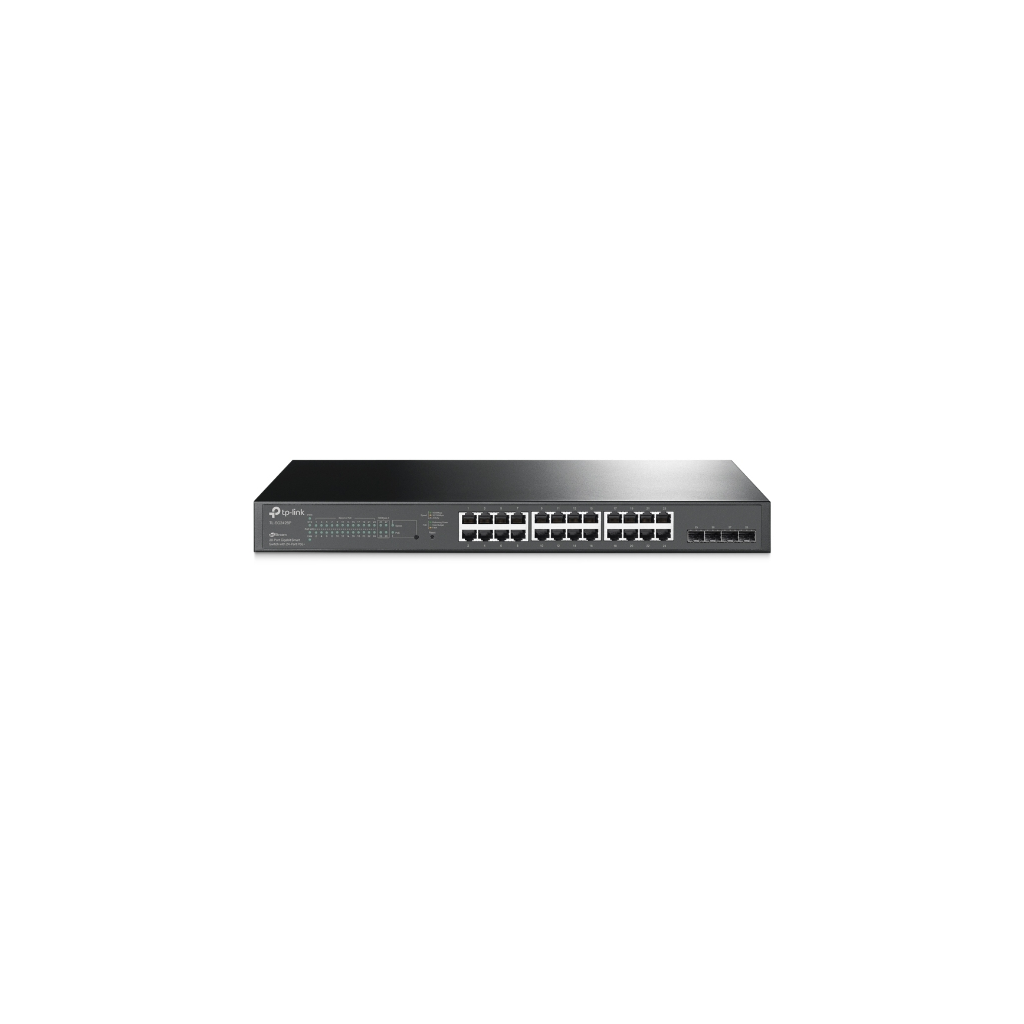

OMADA SG2428P, 28 Port Gigabit, 24 Port PoE+, 250W, 4Port GigaBit SFP, Yönetilebilir, Rackmount Metal Kasa Switch

OMADA SG2428P, 28 Port Gigabit, 24 Port PoE+, 250W, 4Port GigaBit SFP, Yönetilebilir, Rackmount Metal Kasa Switch

10.331,71 ₺ 10331.71 TRY 10.331,71 ₺

Veri Transfer Hızı
- 1Gbps
Port Sayısı
- 24 Adet
PoE Desteği
- 24 Adet
SFP Yuva
- 4 Adet
Rack Kasa
- Uyumlu
Yönetim
- Yönetilebilir

Bu kombinasyon mevcut değil.

Şartlar ve Koşullar
30-gün para iade garantisi
Gönderim: 2-3 İş Günü

DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Arabirim	• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots
Ağ Medyası	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
Fan Sayısı	2
PoE+ Portları (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • Power Supply: 250 W
Boyutlar ( W X D X H )	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Montaj	Rack Mountable
Maks. Güç Tüketimi	• 32.1 W (110 V/ 60 Hz with no PD connected) • 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation	109.53 BTU/h (with no PD connected) • 1052.94 BTU/h (with 250 W PD connected)

PERFORMANS
Bandwidth/Backplane	56 Gbps
Paket Yönlendirme Hızı	41.7 Mpps
MAC Adres Tablosu	8K
Paket Buffer Belleği	4.1 Mbit
Jumbo Frame	9KB

YAZILIM ÖZELLİKLERİ
Quality of Service	• Support 802.1p CoS/DSCP priority • Support 8 priority queues • Queue scheduling: SP, WRR, SP+WRR • Port/Flow- based Rate Limiting • IPv6 QoS • Voice VLAN
L2 ve L2+ Özellikleri	• Static Routing • DHCP Relay • DHCP Server • IGMP Snooping V1/V2/V3 • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) • Spanning Tree STP/RSTP/MSTP • BPDU Filtering/Guard • TC/Root Protect • Loopback detection • 802.3x Flow Control • LLDP, LLDP-MED
VLAN	• Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) • MAC/Protocol-based VLAN
Erişim Kontrol Listesi	• L2–L4 package filtering • MAC ACL • IP ACL • Combined ACL • IPv6 ACL
Güvenlik	• AAA • Port Security • DHCP Snooping • IP-MAC-Port Binding • IPv6-MAC-Port Binding • ARP Inspection • 802.1x and Radius Authentication • SSH v1/v2 • SSL v3/TLSv1.2 • Broadcast/Multicast/Unknown-unicast Storm Control • Dos Defend
IPv6	• Dual IPv4/IPv6 stack • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6
IPv6 Uygulamaları	• DHCPv6 Client • Ping6 • Tracert6 • Telnet (v6) • IPv6 SNMP • IPv6 SSH • IPv6 SSL • Http/Https • IPv6 TFTP

YÖNETİM
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features	• Web-based GUI and CLI management • SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs • RMON (1, 2, 3, 9 groups) • CPU Monitoring • Port Mirroring • Firmware Upgrade: TFTP & Web • System Diagnose: VCT • SYSLOG & Public MIBS • Dual Image • EEE

DİĞERLERİ
Sertifika	CE, FCC, RoHS
Paket İçeriği	TL-SG2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
Sistem Gereksinimleri	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Ortam	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Özellikler

Veri Transfer Hızı	1Gbps
Port Sayısı	24 Adet
PoE Desteği	24 Adet
SFP Yuva	4 Adet
Rack Kasa	Uyumlu
Yönetim	Yönetilebilir
